OEM Original Manufacturer:
Goodyear Original:1B12-313
Goodyear Original:1B12 313
Goodyear Original:1B12313
Firestone W01-358-7008,
Firestone W01 358 7008,
Firestone W013587008,
ContiTech 64596,
ContiTech FS330-11474
ContiTech FS330 11474
ContiTech FS 330-11474
Neway 90557226
Manufacturer: Goodyear
Origin: Mexico
Genuine Goodyear 1B12-313 air spring.
Cross: Firestone W01-358-7008, ContiTech 64596, FS330-11474 and Neway 90557226
Cross-references cannot guarantee that the part will be suitable for any particular application.
The usual below kinds of Goodyear air spring we have
| Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) |
| For a Distributing Frequency Of: |
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM |
| 1B12-301 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 1/4 OS |
| 1B12-304 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12-305 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12-313 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 1/4 OS |

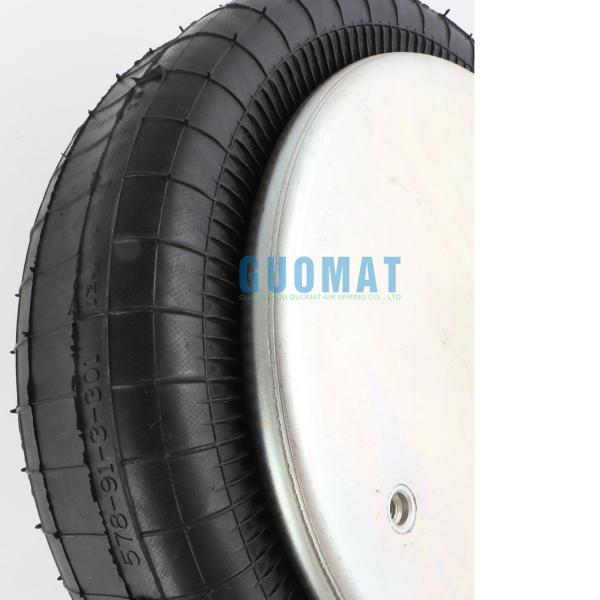

1B12-313 Goodyear single bellows air spring
Goodyear Part number: 1B12-313
Bellows type: single
Ultraman bellows Part number: SP1B22A
Firestone bellows Part number: Not applicable
Goodyear Bellows number: 578-91-3-301
Contitech bellows Part number: FS 330-11
Triangle bellows Part number: 6374
Base plate/neutron type:
Number of top plate holes/studs: 3
Top plate diameter: 9
Top plate C to C diameter: 6.2
Base plate hole bolt Qyt: 2
Base plate diameter: 9
Diameter of base plate C to C: 6.2
Base plate part number:
Bottom plate alignment: parallel
Bumper: No
bracket:
Minimum height: 2.3
Maximum height: 7.2
Other kinds of goodyear air spring:
| 57891230100000 | 1B12-301 | 20094281 | N | 1B12-301 | 1B12-301 |
| 57891230100004 | 1B12-301 | 20094282 | N | 1B12-301 Bellows Air Spring | 1B12-301 Bellows Air Spring |
| 57891230100019 | 57891230100019 | 20094283 | Y | ENIDINE YI-1B12-301 | ENIDINE YI-1B12-301 |
| 57891230400000 | 57891230400000 | 20094286 | Y | 1B12-304 | 1B12-304 |
| 57891230400004 | 57891230400004 | 20116167 | Y | 1B12-304 | 1B12-304 |
| 57891230400019 | 57891230400019 | 20094287 | Y | ENIDINE YI-1B12-304 | ENIDINE YI-1B12-304 |
| 57891230500000 | 57891230500000 | 20094288 | Y | 1B12-305 | 1B12-305 |
| 57891230500004 | 1B12-305 | 20094289 | N | 1B12-305 Bellows Air Spring | 1B12-305 Bellows Air Spring |
| 57891230500019 | 57891230500019 | 20094290 | Y | ENIDINE YI-1B12-305 | ENIDINE YI-1B12-305 |
| 57891230600000 | 57891230600000 | 20094292 | Y | 1B12-306 | 1B12-306 |
| 57891230600004 | 1B12-306 | 20116168 | N | 1B12-306 Bellows Air Spring | 1B12-306 Bellows Air Spring |
| 57891231300000 | 57891231300000 | 20094294 | Y | 1B12-313 | 1B12-313 |
| 57891231300004 | 1B12-313 | 20116169 | N | 1B12-313 Bellows Air Spring | 1B12-313 Bellows Air Spring |
| 57891231300019 | 57891231300019 | 20094295 | Y | ENIDINE YI-1B12-313 | ENIDINE YI-1B12-313 |
| 57891231800000 | 57891231800000 | 20099077 | N | 1B12-318 | 1B12-318 |
| 57891231800004 | 57891231800004 | 20565959 | Y | 1B12-318 | 1B12-318 |
| 57891231800019 | 57891231800019 | 20094300 | Y | ENIDINE YI-1B12-318 | ENIDINE YI-1B12-318 |
| 57891231900004 | 1B12-319 | 20136006 | Y | 1B12-319 KIT | 1B12-319 KIT |
| 57891232200000 | 57891232200000 | 20339463 | Y | 1B12-322 | 1B12-322 |
| 57891232200004 | 1B12-322 | 20339465 | N | 1B12-322 Bellows Air Spring | 1B12-322 Bellows Air Spring |
| 57891233200094 | 57891233200094 | 20810060 | Y | C 1B12-304 | C 1B12-304 |
| 57891233300090 | 57891233300090 | 20810061 | Y | C 1B12-313 | C 1B12-313 |
| 57891233300094 | 57891233300094 | 20811430 | Y | C 1B12-313 | C 1B12-313 |
| 57891233400091 | 57891233400091 | 20810227 | Y | P 1B12-313 | P 1B12-313 |
